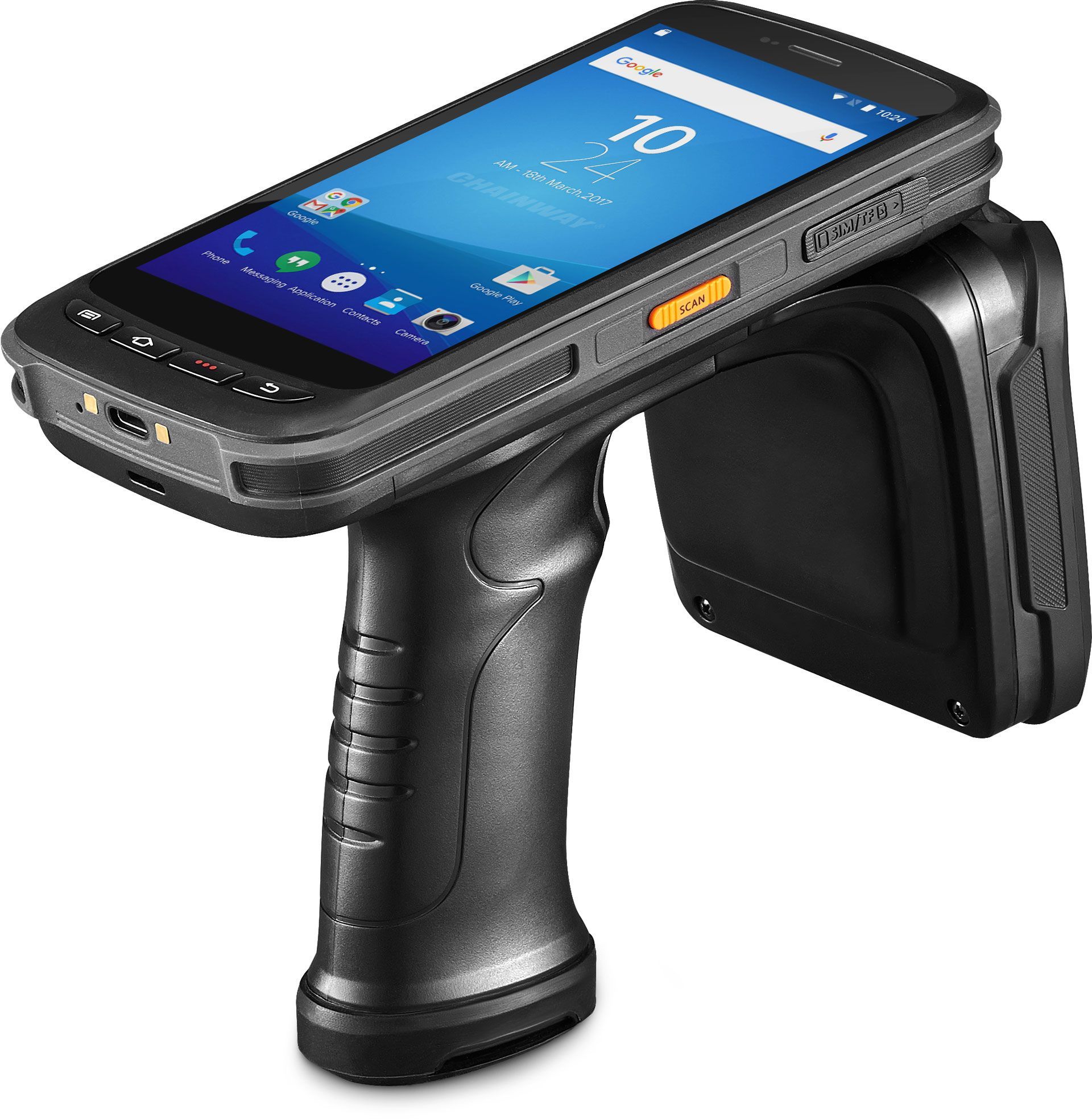

Chainway C72 is an Android rugged mobile computer. It features 8000mAh powerful battery, barcode scanning, as well as high-level UHF RFID capability. It can be equipped with Impinj R2000 linearly (1.8dBi) or circularly (4.0dBi) polarized antenna. That it can read tags in bulk from long distances enables enterprises to deploy this single device in many areas with enhanced efficiency, especially in asset management, retail, warehousing, fleet management, etc.

More info

Technical Specification

Dimensions 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Display 5.2'' IPS FHD 1920x1080
Power Li-ion, rechargeable, 8000mAh
CPU (Quad-core) Cortex-A53 Quad-core 1.45GHz
RAM+ROM (Quad-core) 2GB+16GB
Operating System (Quad-core) Android 6.0
CPU (Qcta-core) Cortex-A53 Octa-core 2.5GHz
RAM+ROM (Qcta-core) 3GB+32GB
Operating System (Quad-core) Android 8.1
Expansion Supports up to 128 GB Micro SD card
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Sealing Host IP65 per IEC sealing specifications
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN 4G/3G/2G (For detailed specification, please visit our website)
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Camera 13MP Autofocus with flash
1D/2D Scan Engine (Optional) Zebra / Honeywell Scan Engine
RFID (Optional) 865MHz-868MHz / 920-925MHz / 902-928MHz
25m (indoors); 10m (outdoors) (*Ranges and depend on tags and environment)
NFC (Optional) 13.56MHz
Iris (Optional) Rate: <150ms, Range: 20-40cm
