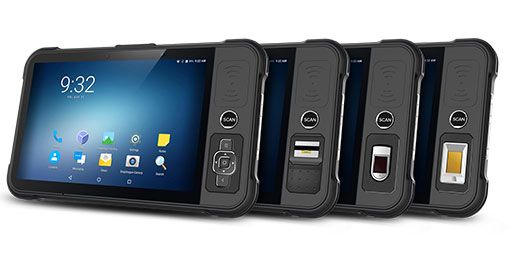

Chainway P80 with abundant functions is an Android 7.1 rugged tablet. With its powerful Qualcomm CPU, 8 inch high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID (Impinj R2000 chip), barcode scanning, HF RFID/NFC, Iris and fingerprint recognition, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.

More info

Technical Specification

Dimensions 250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in(for standard version)
Display 8'' IPS LTPS 1920x1200
Power Li-ion, rechargeable, 8000mAh
CPU Qualcomm 1.8GHz Octa-core
Expansion Supports up to 128GB Micro SD card
Operating System Android 7.1
Drop Specification Multiple 1.5m/4.9ft drops to concrete across the operating temperature range
Sealing IP65 per IEC sealing specifications
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN 4G/3G/2G (For detailed specification, please visit our website)
Bluetooth Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
Camera 13MP Autofocus with flash + 8MP(Front)
1D/2D Scan Engine (Optional) Zebra / Honeywell Scan Engine
RFID Frequency (Optional) 865MHz-868MHz / 920-925MHz / 902-928MHz
NFC/HF (Optional) 13.56MHz
Fingerprint (Optional) TCS1/TCS2 Capacitive, Optical Morpho CBM-E3
PSAM (Optional) 2 PSAM card slot
