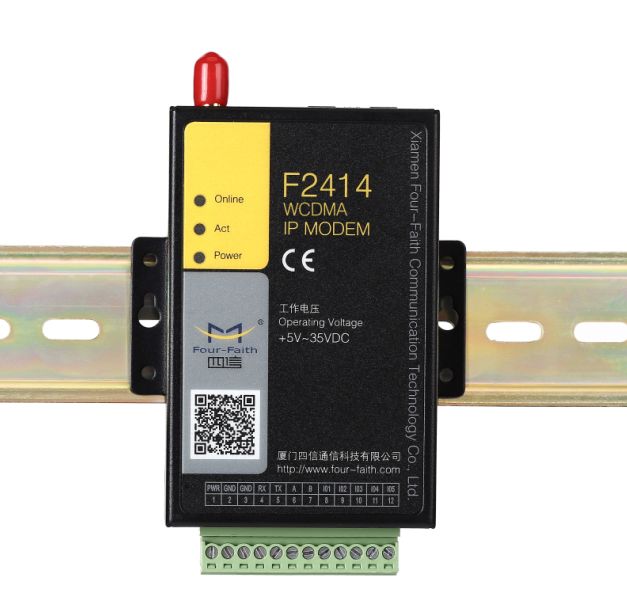

F2414 UMTS/WCDMA/HSDPA/HSUPA IP MODEM
● UMTS/WCDMA/HSDPA/HSUPA Network
● Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
● Low power consumption design
● Support multi-sleep and trigger modes to reduce the power dissipation farthest
● Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
● RS232/RS485/RS422 port
● Embedded Real Time Clock(RTC) circuit
● Provide management software for remote management
Cellular Specification
|
Item |
Content |
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz WCDMA/HSDPA/HSUPA/EDGE CLASS 12 |
|
Bandwidth |
HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL) |
|
TX power |
<24dBm |
|
RX sensitivity |
<-109dBm |
Hardware System
|
Item |
Content |
|
CPU |
Industrial 32 bits CPU |
|
FLASH |
512KB (Extendable) |
|
SRAM |
256KB(Extendable) |
Interface Type
|
Item |
Content |
|
Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
|
Indicator |
"Power", "ACT", "Online" |
|
Antenna |
Standard SMA female interface, 50 ohm, lighting protection(optional) |
|
SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
|
Power |
Terminal block interface, reverse-voltage and overvoltage protection |
|
|
|
Power Input
|
Item |
Content |
|
Standard Power |
DC 12V/0.5A |
|
Power Range |
DC 5~35V |
Power Consumption
|
Working States |
Power Consumption |
|
Communication |
50-80mA@12VDC；115-150mA@5VDC |
|
Standby |
20mA@12VDC；35mA@5VDC |
|
Sleep |
8mA@12VDC；18mA@5VDC |
|
Timing Power Off |
0.6mA@12VDC；1mA@5VDC |
Physical Characteristics
|
Item |
Content |
|
Housing |
Iron, providing IP30 protection |
|
Dimensions |
91x58.5x22 mm |
|
Weight |
205g |
Environmental Limits
|
Item |
Content |
|
Operating Temperature |
-25~+65ºC (-13~+149℉) |
|
Extended Operating Temperature |
-30~+75ºC (-22~+167℉) |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% ( unfreezing) |
